REQUIREMENTS1 - Java SE Development Kit (JDK) 6 Update 11Download
Java SE 6To install Java double click on the executable jdk-6u11-windows-i586.exe and follow the wizard instructions.
2 - Apache Tomcat 6.0.18Tomcat is needed to deploy and run your RichFaces web application.
Download
Tomcat 6.0.18To install Tomcat, double click on the apache-tomcat-6.0.18.exe and follow the wizard instructions. You need to use the Java 6 home in the 'Java Virtual Machine' page.
3 - Eclipse Enterprise Edition 3.4 GanymedeDownload
eclipse-jee-ganymede-SR1-win324 - Java Server Faces (JSF) librariesDownload
JSF 1.25 - Java Standard Tag Library (JSTL) librariesDownload
JSTL 1.26 - Facelets librariesDownload
Facelets 1.1.147 - RichFaces librariesDownload
RichFaces 3.2.28 - Apache Commons librariesRichFaces needs the following apache commons jars:
Download
commons-beanutils-1.7.0 commons-collections-3.2commons-digester-1.8commons-logging-1.1.1
EXTRATING THE ZIP FILESExtract all the zip files to any directory (My extract directory C:\canjur\downloads).
Iam going to refer this directory (C:\canjur\downloads) as your
DOWNLOADS_EXTRACT_HOME hereafter.
LAUNCH ECLIPSE & CREATE WORKSPACEStep 1:Go to <your eclipse home>\eclipse & Launch eclipse enterprise edition (eclipse.exe)
Step 2:Create a workspace. Say C:\workspace-jee\richfaces-demo-1

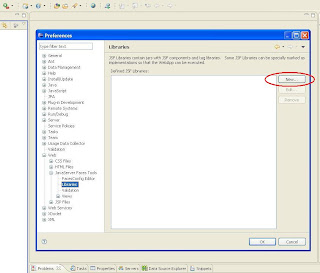

SETUP ECLIPSE FOR RICHFACES DEVELOPMENTStep 3:In eclipse, go to Window->Preferences and choose Web->JavaServer Faces Tools->Libraries
Step 4:You need to define the following new JSF libraries which is needed to create a JSF 1.2 with RichFaces web application
- SUN_RI_1.2
- JSTL
- FACELETS
- RICHFACES
- COMMONS
Lets do it one by one.

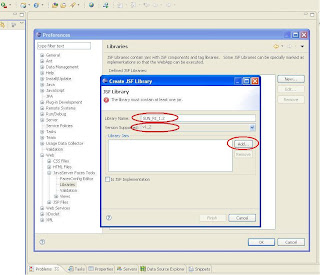

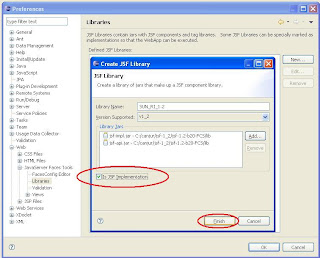

SUN-RI-1.2Click 'New ...' in the 'Libraries' page. Input the following :
Library Name: SUN-RI-1.2
Version Supported: v1_2
Click 'Add' under 'Library Jars'. The Browser for Jars/Zips pops up.
Go to your <DOWNLOADS_EXTRACT_HOME>\jsf-1_2\jsf-1.2-b20-FCS\lib (in my machine it is C:\canjur\jsf-1_2\jsf-1.2-b20-FCS\lib).
Select jsf-api.jar & jsf-impl.jar and click 'Open'.
Check 'Is JSF Implementation' in the Create JSF Library popup and click 'Finish'.
JSTLRepeat the same steps listed under SUN-RI-1.2 to add the JSTL library.
Note: Do not Check the 'Is JSF Implementation' for JSTL.
Library Name : JSTL
Version Supported : v1_2
Jar Location : <DOWNLOADS_EXTRACT_HOME>
Jar Name(s) : jstl-api-1.2.jar
FACELETSRepeat the same steps listed under SUN-RI-1.2 to add the FACELETS library.
Note: Do not Check the 'Is JSF Implementation' for FACELETS.
Library Name : FACELETS
Version Supported : v1_2
Jar Location : <DOWNLOADS_EXTRACT_HOME>\facelets-1.1.14\facelets-1.1.14
Jar Name(s) : jsf-facelets.jar
RICHFACESRepeat the same steps listed under SUN-RI-1.2 to add the RICHFACES library.
Note: Do not Check the 'Is JSF Implementation' for RICHFACES.
Library Name : RICHFACES
Version Supported : v1_2
Jar Location :
<DOWNLOADS_EXTRACT_HOME>\richfaces-ui-3.2.2.SR1-bin\richfaces-ui-3.2.2.SR1\libJar Name(s) :
richfaces-api-3.2.2.SR1.jar
richfaces-ui-3.2.2.SR1.jar
richfaces-impl-3.2.2.SR1.jar
COMMONSRepeat the same steps listed under SUN-RI-1.2 to add the COMMONS library.
Note: Do not Check the 'Is JSF Implementation' for COMMONS.
Library Name : COMMONS
Version Supported : v1_2
Jar Location :
<DOWNLOADS_EXTRACT_HOME> (for commons-beanutils-1.7.0.jar)
<DOWNLOADS_EXTRACT_HOME>\commons-collections-3.2\commons-collections-3.2
<DOWNLOADS_EXTRACT_HOME>\commons-digester-1.8\commons-digester-1.8
<DOWNLOADS_EXTRACT_HOME>\commons-logging-1.1.1-bin\commons-logging-1.1.1
Jar Name(s) :
commons-beanutils-1.7.0.jar
commons-collections-3.2.jar
commons-digester-1.8.jar
commons-logging-1.1.1.jar

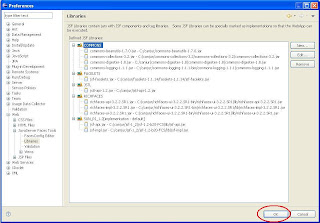

Finally, Click OK button in the Preferences->Web->JavaServer Faces Tools popup.
You are ready to create a RichFaces web application. Lets rock !
RICHFACES WEB APPLICATIONStep 5:Create a new Dynamic Web Project in eclipse.
Click File->New->Dynamic Web Project
Project Name : RichFaces
Target Runtime : (Don't worry about it now. We will define it later.)
Dynamic Web Module Version : 2.5
Configuration : JavaServer Faces v1.2 Project
Click Next.
Click Next.

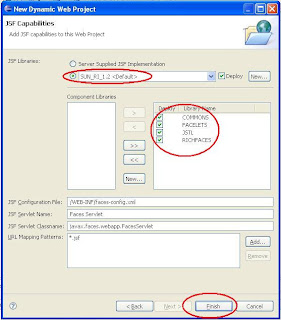

- Choose SUN_RI_1.2 under JSF Libraries:
- Add all the Component Libraries to Deploy (click >>)
- Remove /faces/* from URL Mapping Patterns and add *.jsf

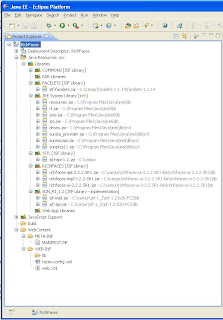

Click 'Finish'. You will see the project tree similar to the one shown in the picture below.
RICHFACES CONFIGURATION FILES
Step 6:
Edit your RichFaces->WebContent->WEB-INF web.xml & faces-config.xml, go to src tab and type the contents shown in the images below:
web.xml (Iam not able to properly indend & color the XML file hence the picture. If you need the XML files write to me. I will mail it to you)
faces-config.xml (Iam not able to properly indend & color the XML file hence the picture. If you need the XML files write to me. I will mail it to you)
Save your web.xml & faces-config.xml.
INDEX & JSP FILES
Step 7:
Create index.html & iexplore.jsp under RichFaces->WebContent and copy paste the contents below.
index.html (
Iam not able to properly indend & color the file hence the picture. If you need the file write to me. I will mail it to you)
iexplore.jsp (
Iam not able to properly indend & color the file hence the picture. If you need the file write to me. I will mail it to you)
JAVA SRC FILES (JSF MANAGED BEANS)
Step 8:
Right click 'Java Resources: src' in you project tree and select New->Package to create a package called richfaces.managedbeans.
Create Java files named
- FileSystemBean.java
- FileSystemNode.java
- PostbackPhaseListener.java
- TreeDemoStateAdvisor.java
The files listed above are available @
http://jsfunit.demo.jboss.com/jboss-jsfunit-examples-richfaces/richfaces/treeNodesAdaptor.jsf?c=recursiveTreeNodesAdaptor
In case you are not seeing the files under the abover URL, then navigate to
- http://jsfunit.demo.jboss.com/jboss-jsfunit-examples-richfaces/
- Click RichTrees in the Left panel bar
- Click Recursive Tree Adaptor
Once you are done copied the java files to your richfaces.managedbeans package you need to do the following :
- All the java files has package name as package org.richfaces.treemodeladaptor. Change it to 'richfaces.managedbeans'.
- Open FileSystemBean.java and change the line private static String SRC_PATH = "/WEB-INF/src"; to private static String SRC_PATH = "/WEB-INF";

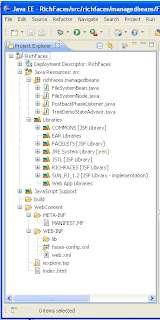

Your project tree should look like this :
JAVA PROPERTIES FILE
We are going to create a properties file called iexplore.properties under your RichFaces->Java Resources:src.
Step 9:
Right click Java Resources:src and choose New->Other. Choose General->File and click Next.
Select RichFaces->src folder. Input 'iexplore.properties' for the File name and click Finish.

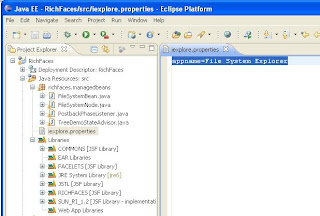

Open iexplore.properties, copy & paste the following line in the editor and save the file.
appname=File System Explorer
RUNNING THE RICHFACES WEB APPLICATION
Lets run our RichFaces web application. Before we run you should know what the application is going to display in the browser window inside eclipse.
The index.html is going to navigate to iexplore.jsp file.
The iexplore.jsp is going to read the file structure under your deployed web application WEB-INF and display it using the RichFaces <rich:tree> and <rich:recursivetreenodesadaptor> components.
This application may sound too much for a beginer, but once you get it up and running you will learn everything you want to build a sophisticated RichFaces web application. That is my motto !
Step 10:
Right click on RichFaces->WebContent->index.html and select Run As->Run on Server
Under 'Select the server type' choose 'Tomcat v6.0 Server' and click Next.
Click on 'Browse' button under 'Tomcat installation directory'.
Choose you (on my system it is C:\Program Files\Apache Software Foundation\Tomcat 6.0)
Click Next. The wizard should look like the one shown below.
Click 'Finish'. Eclipse will start the tomcat server and deploy your RichFaces web application.

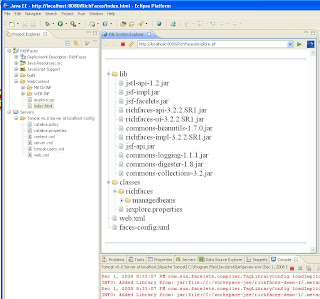

You should see the following in the eclipse browser.
CONGRATULATIONS ! You have learned all the technologies needed to develop RichFaces/JSF web applications.
Note 1: If you are stuck or if any of the download links are broken please write to me. I will fix it in this article.
Note 2: I didn't had time to explain in detail about the web.xml & faces-config.xml. I will explain them later on demand.
